Welded Dumbbell Parts
Couldn't load pickup availability
View Size / Price Table
View Size / Price Table
| Part No. | Description | Price | |
|---|---|---|---|
| EP-1-WLD | EP-1 - End Plate for Welded Dumbbell | $ 15.00 | |
| SX-5BLK | SX-5 - Sleeve for Welded Dumbbell (Black oxide finish) | $ 15.00 | |
| SXC-5 | SXC-5 - Sleeve for Welded Dumbbell (Chrome finish) | $ 20.00 | |
| DW-1-SX/C-5 | DW-1 - Internal dumbbell Washer for either side of SX/C-5 | $ 2.00 |
WAREHOUSE FIND!

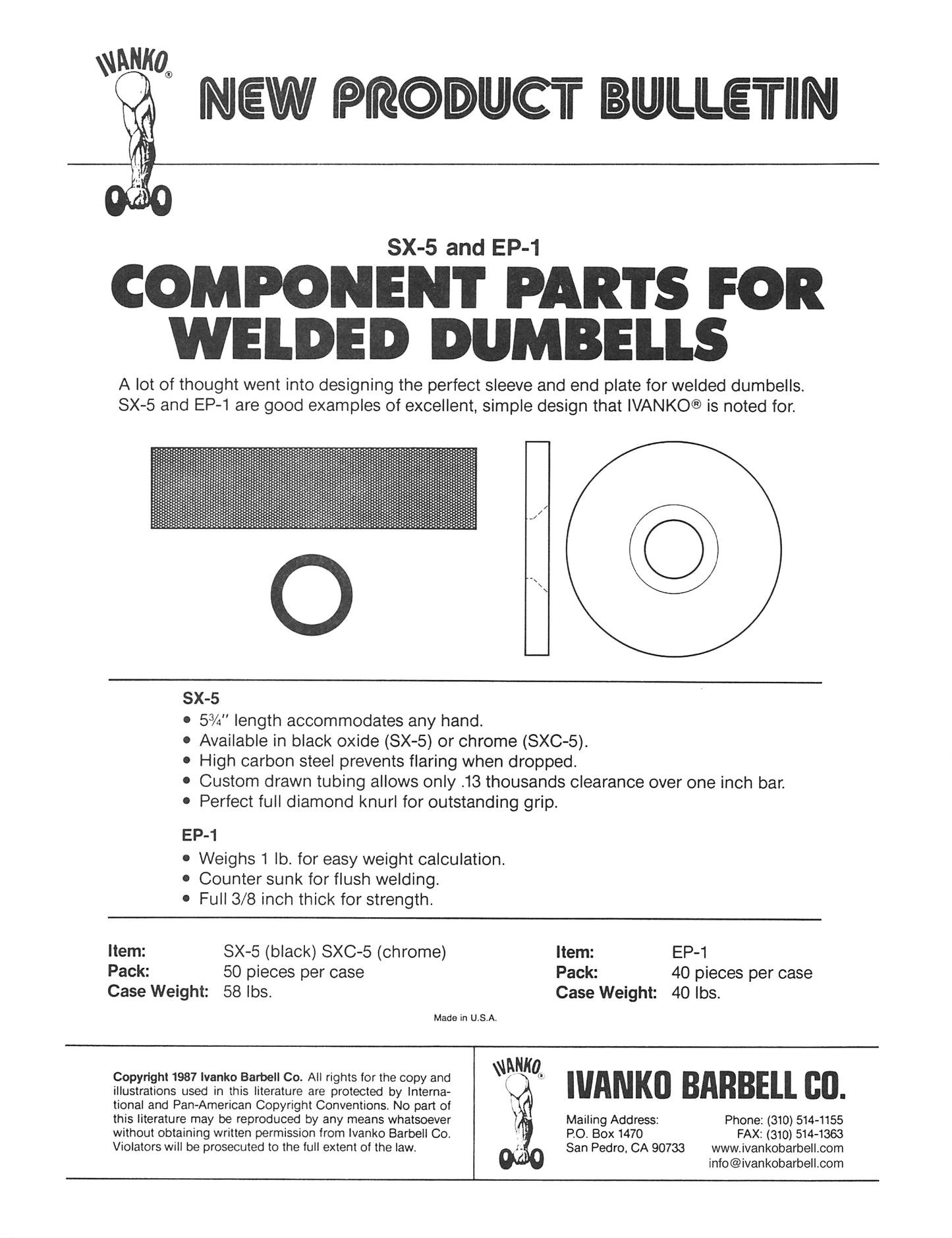

N.O.S. IVANKO Parts for welded dumbbells.

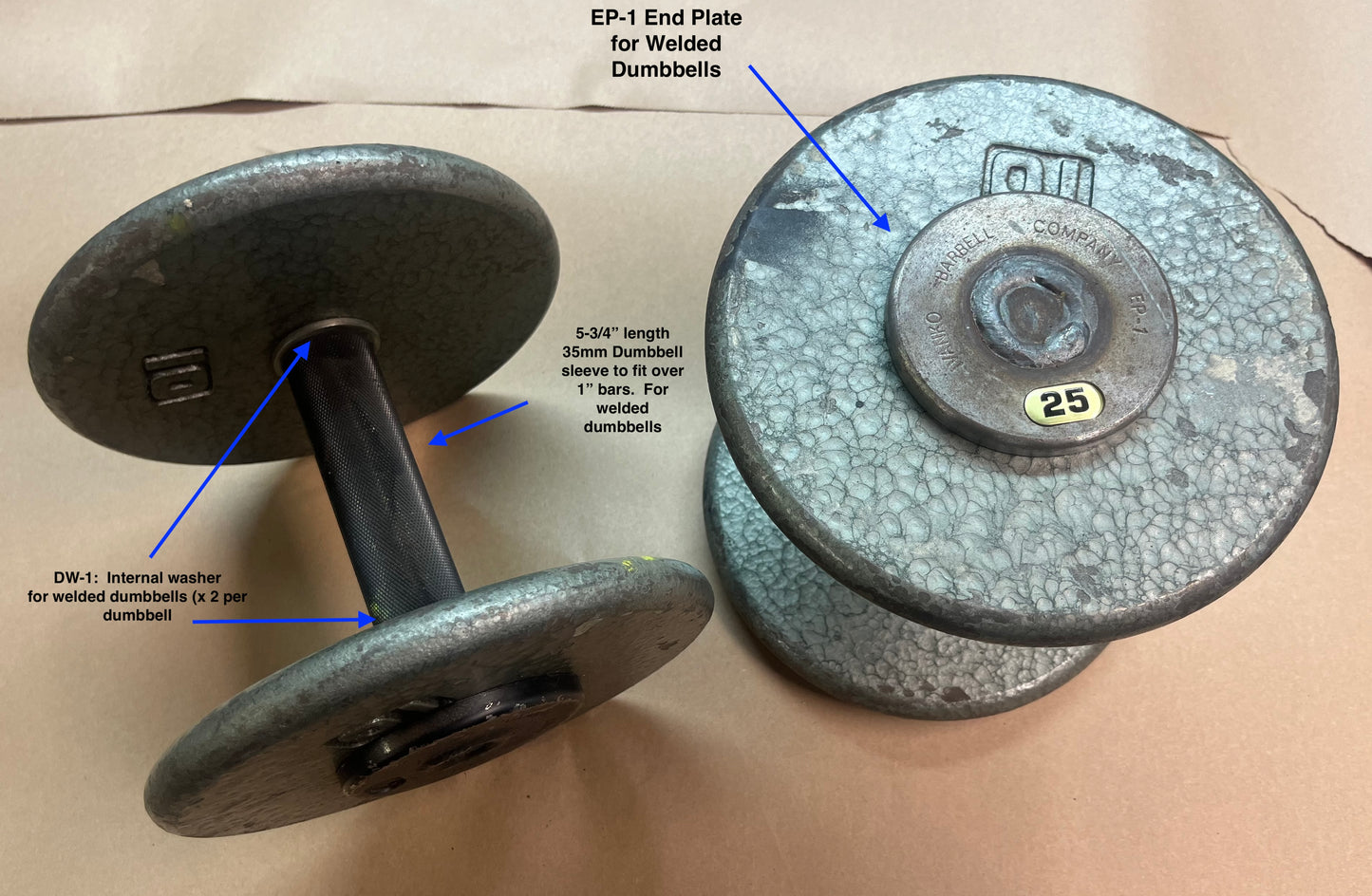

These parts were used for one of the old school ways to make a set of dumbbells. Here we offer end plates and sleeves (that fit over 1" steel bar) that allow you to assemble a durable set of dumbbells, the old school way. Made in USA.

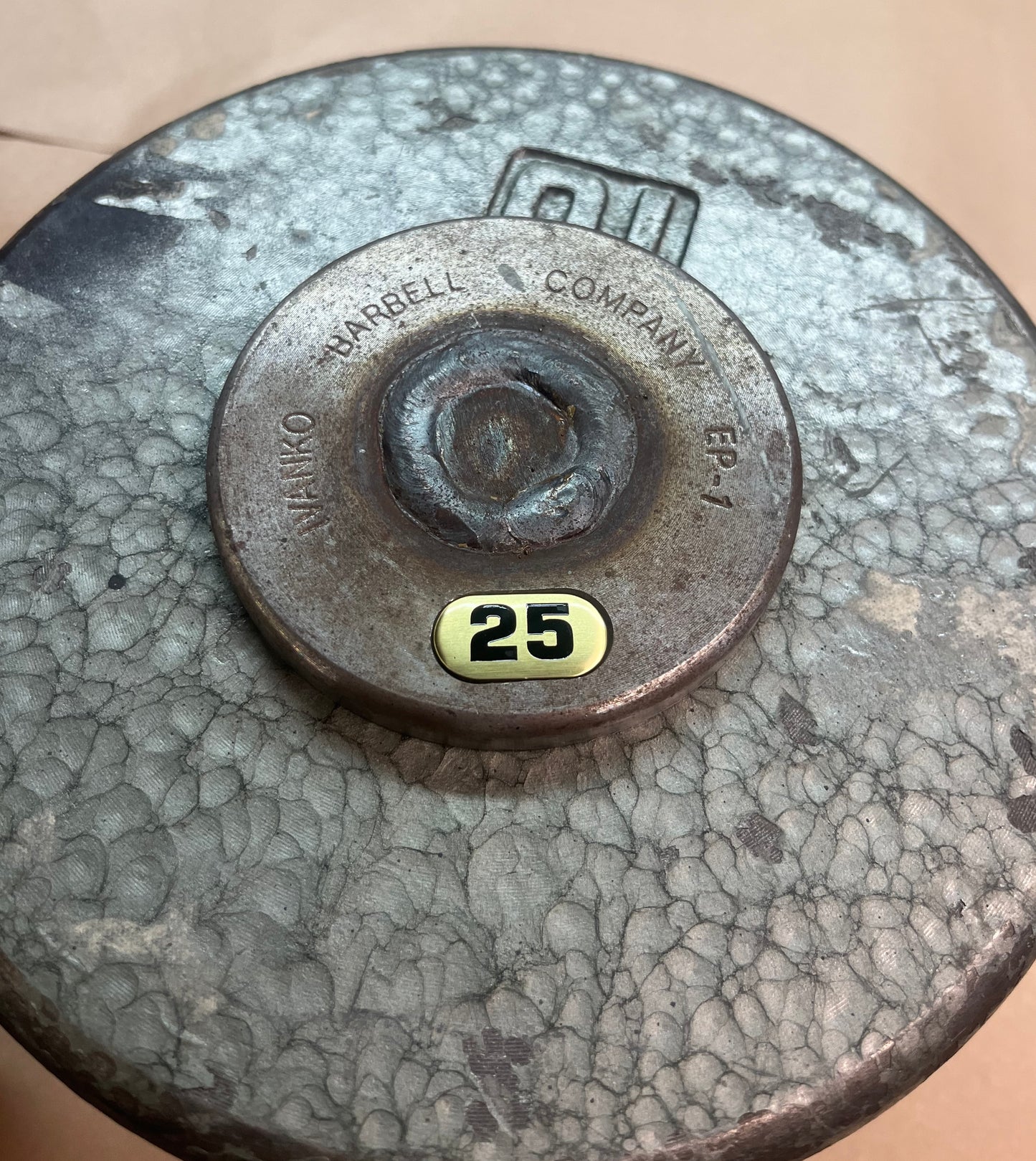

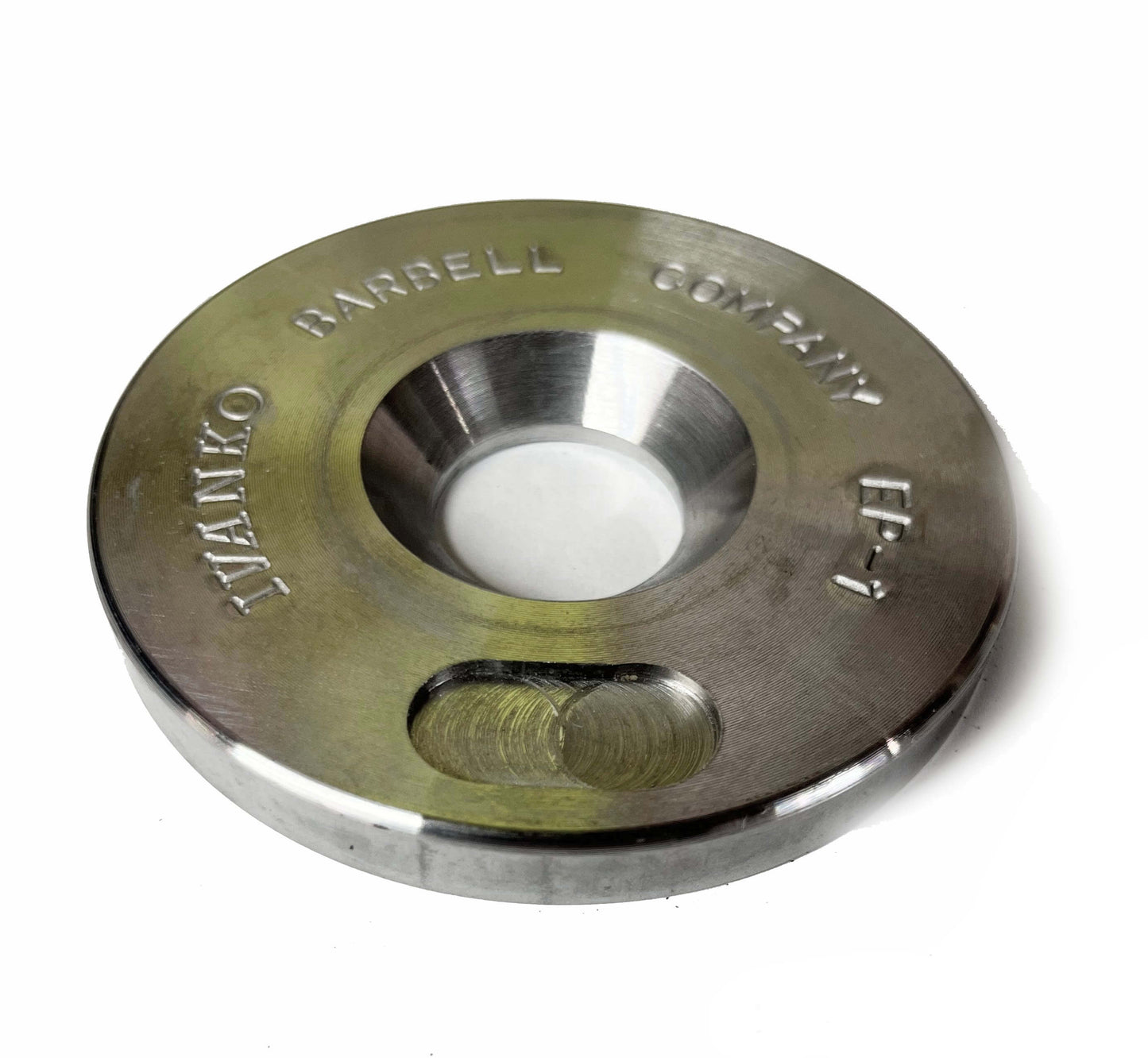

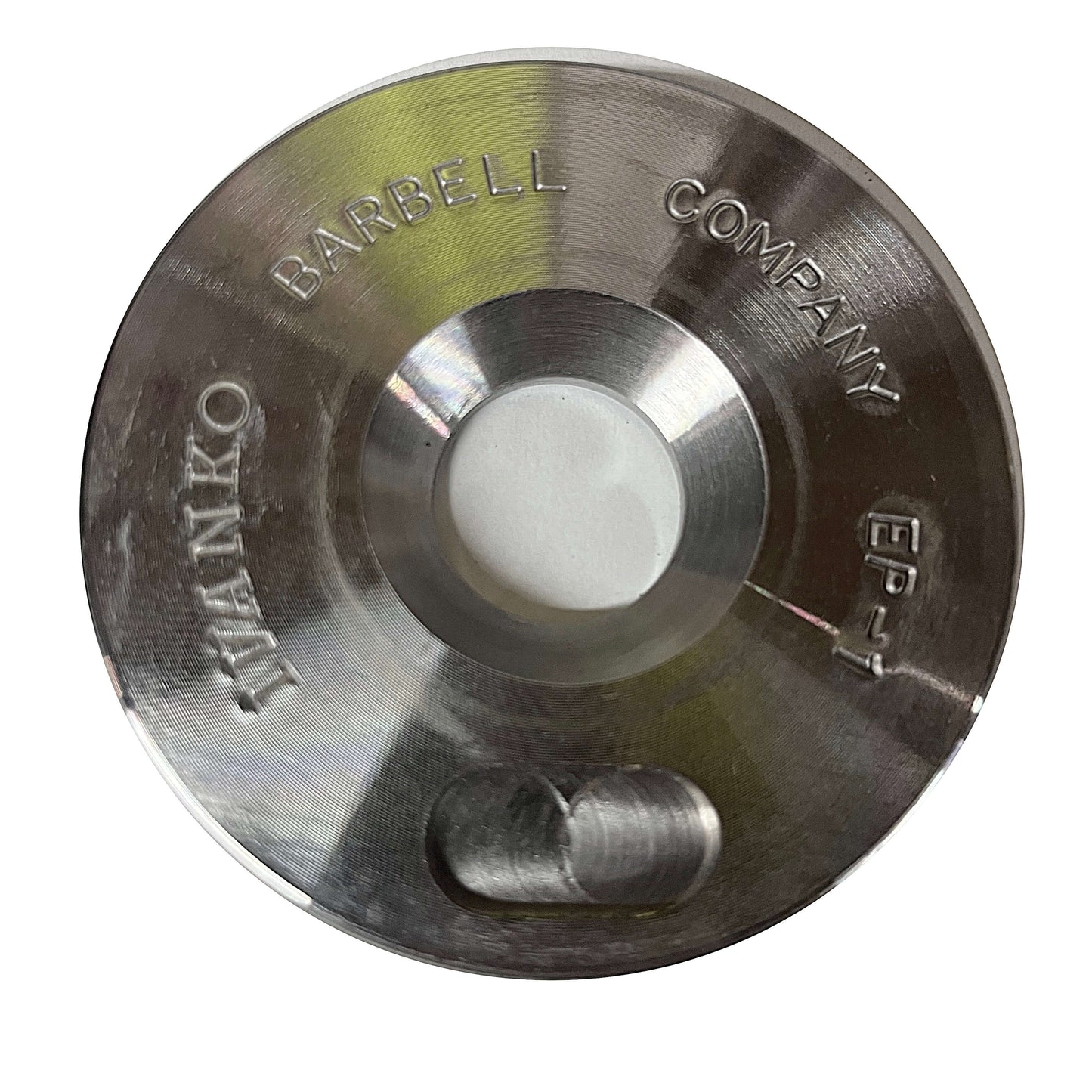

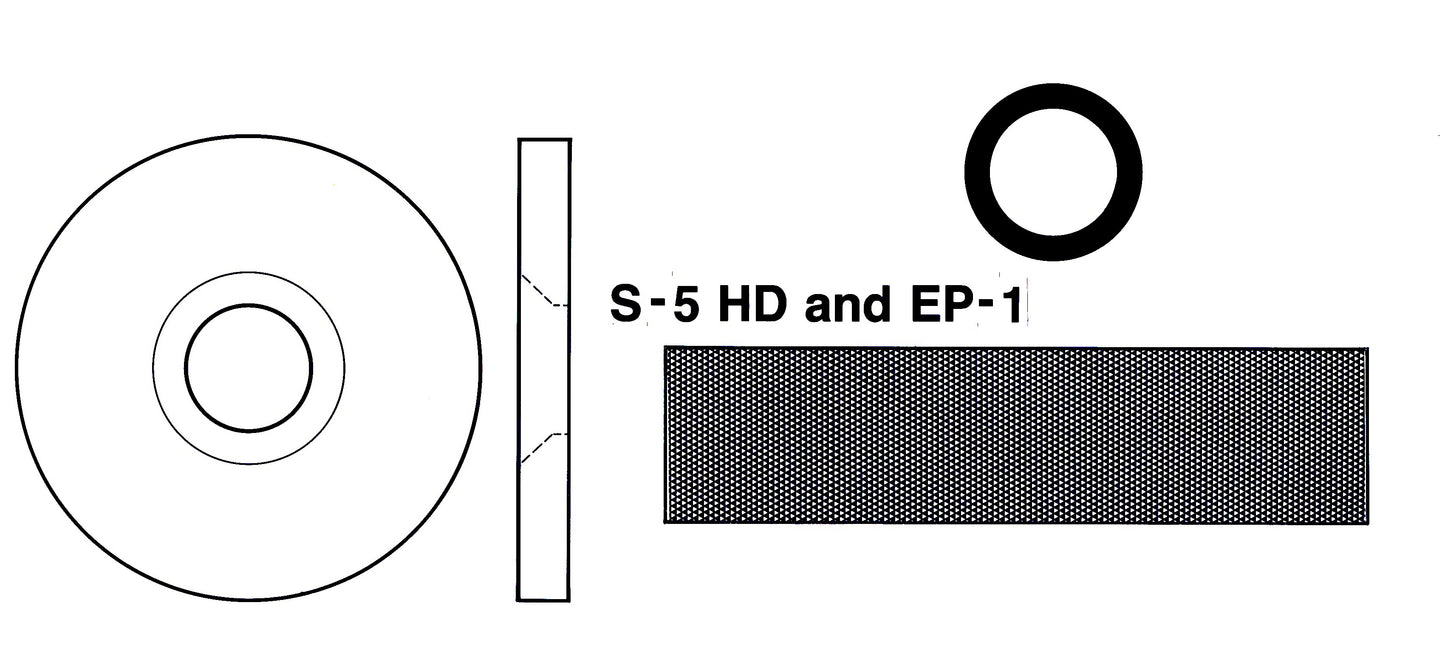

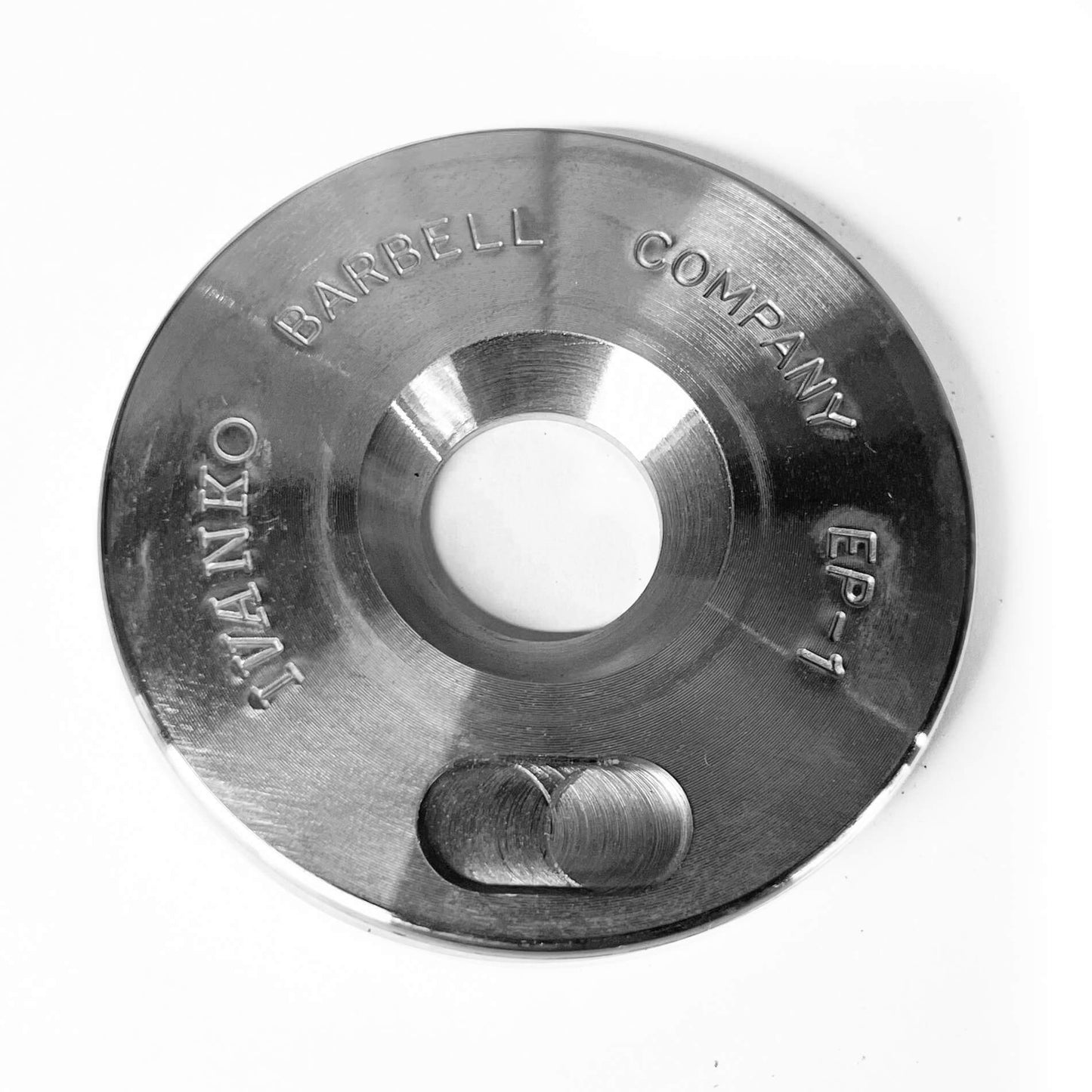

EP-1: End Plate. 1 lb ea.; 3/8" thickness; counter sunk for a nice weld.

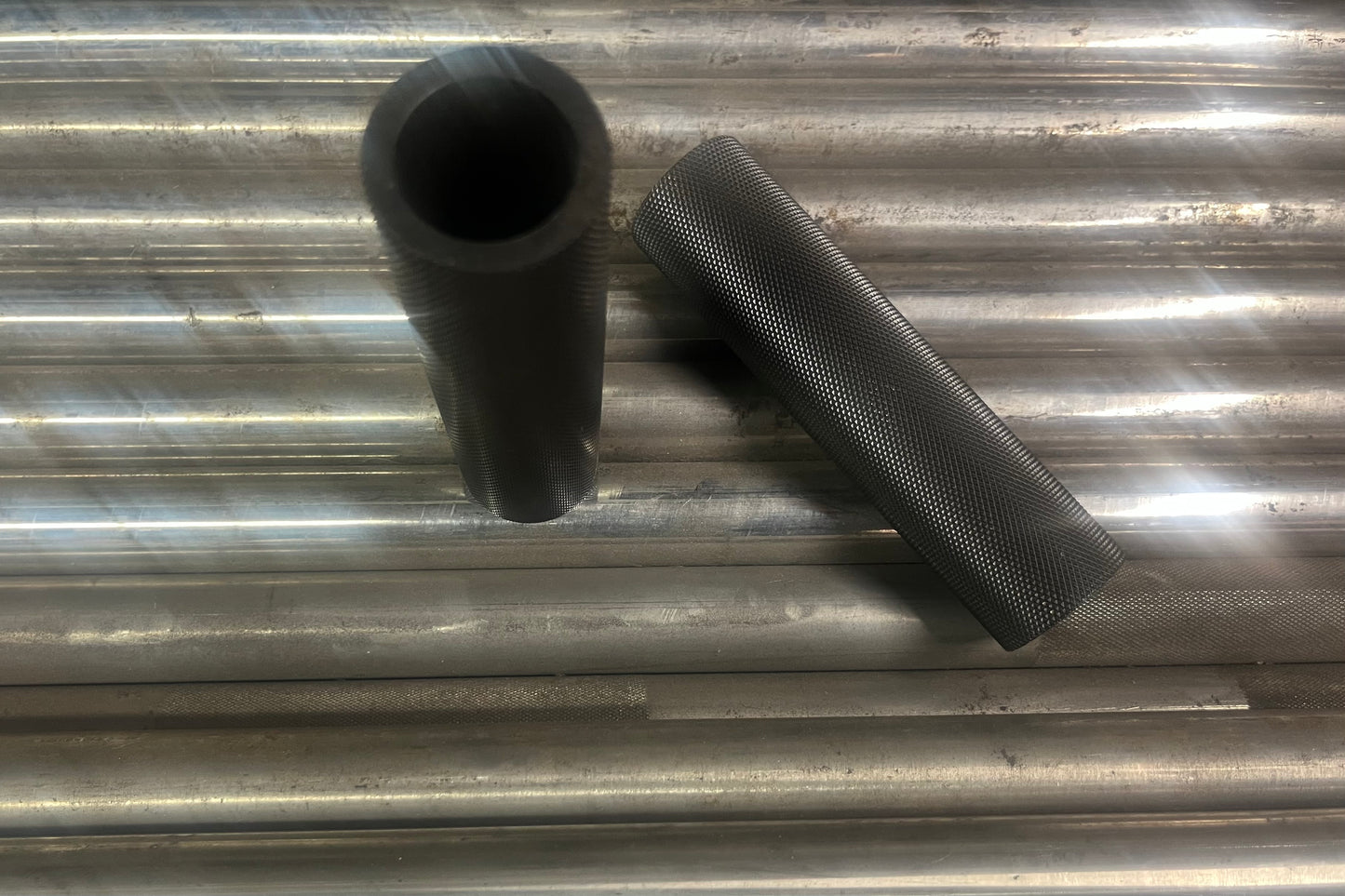

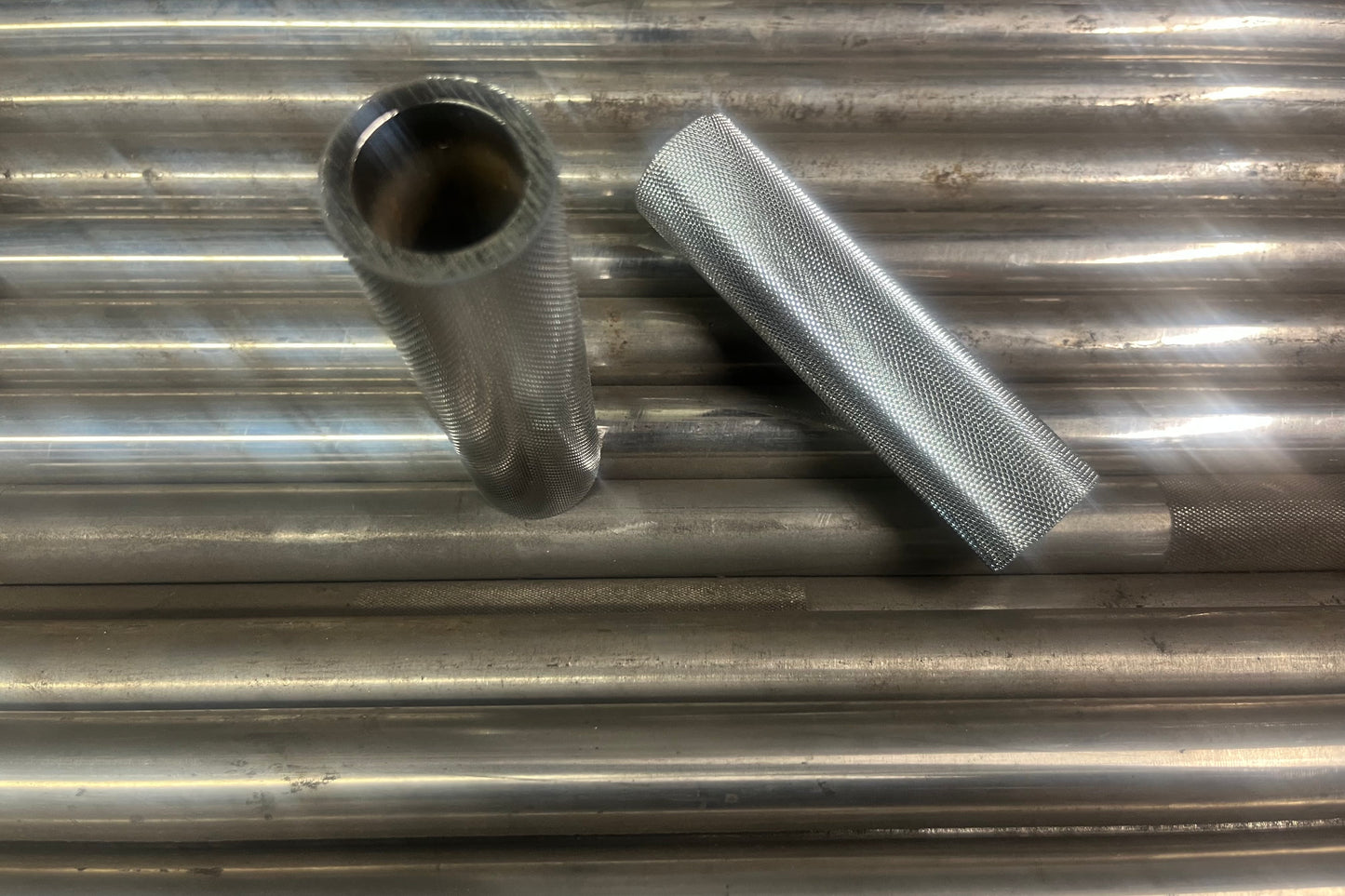

SX-5 & SXC-5: 5-3/4" length; 35mm Diameter; High-Quality Carbon steel dumbbell sleeve w/sharp diamond knurl; Custom drawn tubing allows 13/1000th's of an inch clearance over a 1" steel bar; black oxide or chrome finish. Made in USA.

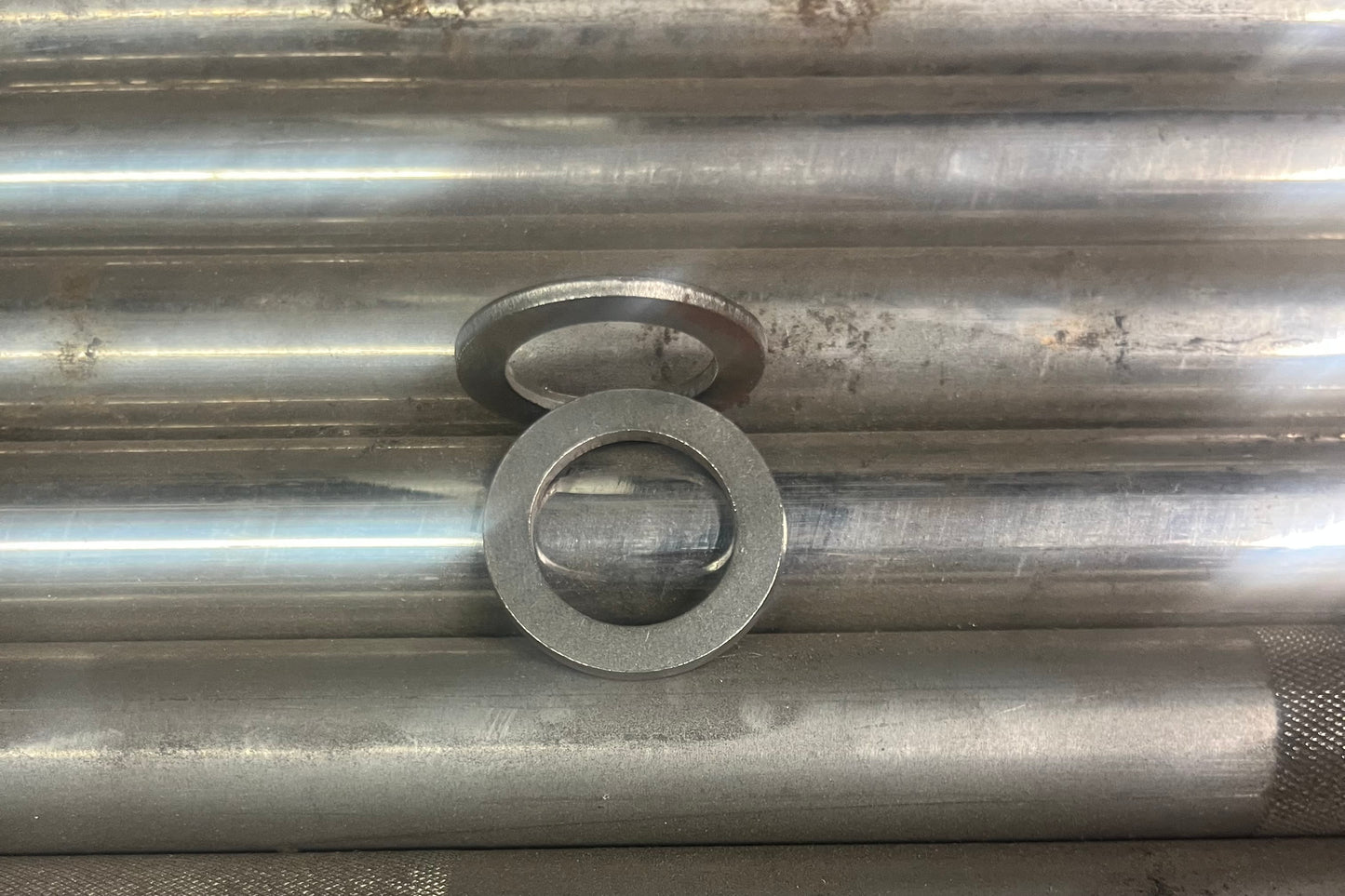

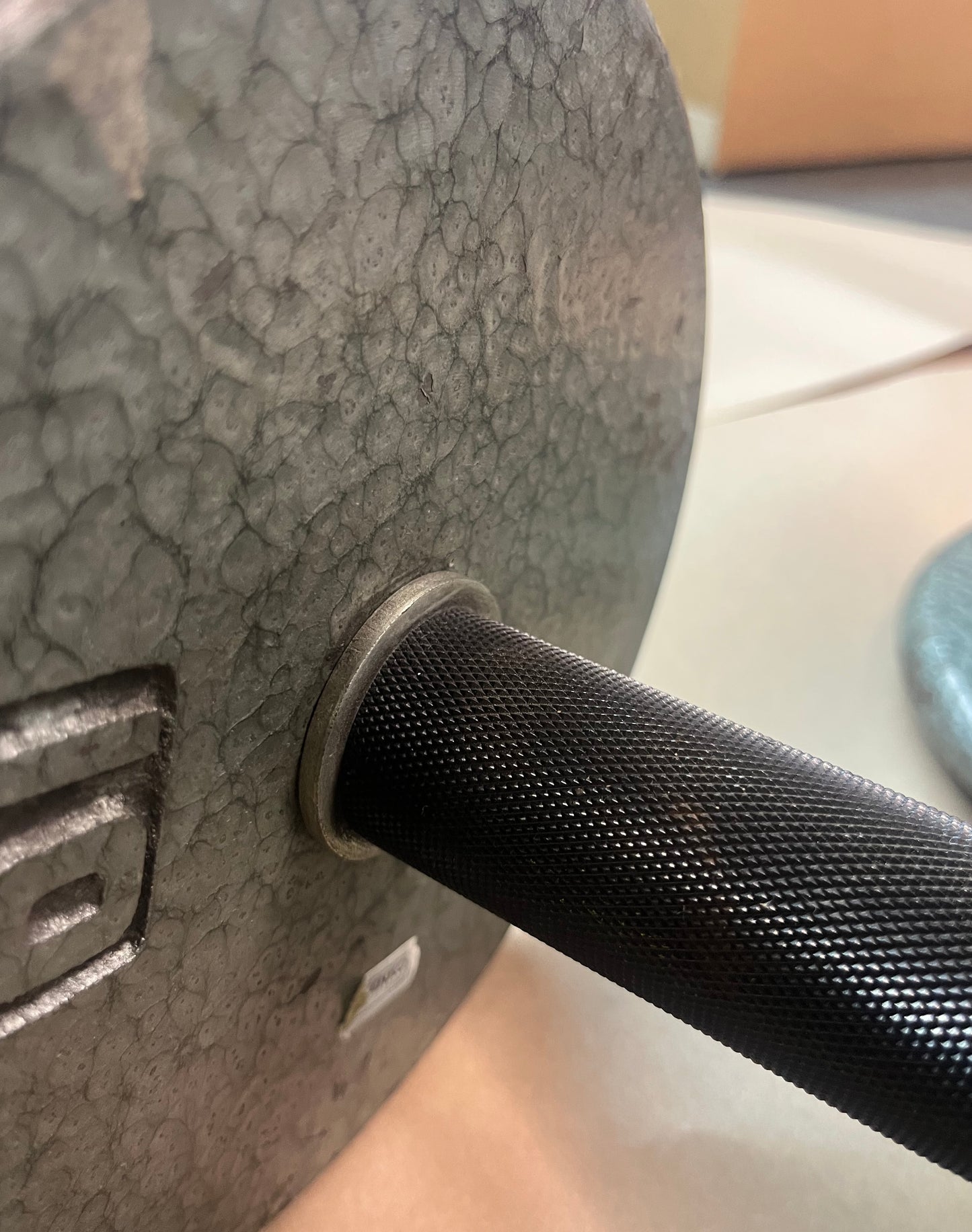

DW-1: Dumbbell washer, clears by a few thousandths 1" round. Good for either end of inside of dumbbell between sleeve and your inside plate.
On request, we will send you a list of cut-lengths for your 1" steel round bars for a set of 5-100lbs. Best way to determine cut length is to "line up" plates for each size you want to make (on either side SX-5 sleeve (5-3/4") and include thickness of EP-1 end plate (3/8") on either side.
